Smart bulb using electronic components

Introduction:

A smart bulb is a lighting device that can be controlled remotely using electronic components, such as microcontrollers, wireless communication modules, and sensors. It allows users to turn the light on or off, adjust brightness, and sometimes change colors through various interfaces like a smartphone app, voice commands, or even through automated schedules.

Key Electronic Components of a Smart Bulb:

1. Light Emitting Diode (LED):

   • The primary source of light. LEDs are energy-efficient, long-lasting, and can provide a range of colors depending on the design.

2. Microcontroller/Processor:

   • The brain of the smart bulb, it controls the bulb's functions, processes inputs from sensors, and manages communication with external devices. Common microcontrollers used are Arduino, ESP8266, ESP32, or other custom designs.

Arduino:

Key Components of Arduino:

1. Arduino Board:

   • The physical board contains a microcontroller that can be programmed. Some popular Arduino boards are:
     • Arduino Uno: The most popular and beginner-friendly board.
     • Arduino Nano: A smaller version of the Uno, good for compact projects.
     • Arduino Mega: A board with more I/O pins, ideal for complex projects.
     • Arduino Leonardo: Features built-in USB communication, allowing it to act as a mouse or keyboard.
   • Each board comes with different features like the number of I/O pins, communication ports, and memory size, so you can choose the one that fits your project's needs.
   •                              protect low-voltage
   •





   • The Evolution of Light Bulbs:

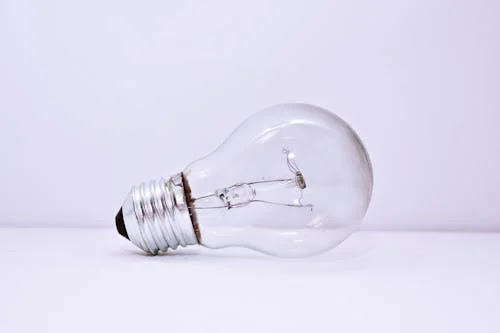

     The light bulb has undergone significant changes since its invention in the late 19th century. The incandescent light bulb, invented by Thomas Edison in 1879, was the first commercially successful electric bulb. It provided a much safer and more efficient way to light homes compared to traditional gas lamps.

   •

   • Relay with Arduino Uno R3: 7 Steps - Instructables

     Using a relay with an Arduino Uno R3 allows you to control high-power devices (such as lights, motors, or fans) using the low-power Arduino board. A relay acts as a switch that can turn these devices on or off, based on the signals from the Arduino. Below is a simplified version of the steps involved in connecting a relay to the Arduino Uno R3 to control a device.

     Materials Needed:

     1. Arduino Uno R3
     2. Relay module (preferably a 5V relay)
     3. Jumper wires
     4. Breadboard (optional, but recommended for prototyping)
     5. High-power device (e.g., lamp, motor, or fan) to control
     6. External power supply (for high-power device)
     7. Diode (optional, for protection)
     8. Resistor (optional, for safety)
     9.

     10.
     11.


         Types of Relays

         • Electromechanical relays (EMR): Traditional relays that physically move contacts to make or break a circuit.
         • Solid-state relays (SSR): Use semiconductor devices instead of mechanical contacts, offering faster response times and no moving parts.
         1.



     12. Uses and Benefits:

         • Educational Tool: It is widely used in schools and universities to teach students basic programming concepts.
         • Prototype Development: It is a great tool for quickly building prototypes or proofs of concept for mobile applications.
         • No-Code Development: Ideal for users who want to create apps but do not know traditional programming languages.
         • Community Support: A large online community of users and tutorials is available to help new developers learn and solve problems.
         •
